Graphite resistance sintering furnace

The equipment is batch type resistance furnace,mainly used in the heating treatment of PI film,radiation proof material,Rare earth oxide,ceramic material,ceramic valve,carbide products,tungsten carbide,silicon carbide,powder metallurgy,gemstone,rhenium material,HSS parts,polysilicon material,graphite and carbon materi..

Consult now

Introduction

1.Application:
The equipment is batch type resistance furnace,mainly used in the heating treatment of PI film,radiation proof material,Rare earth oxide,ceramic material,ceramic valve,carbide products,tungsten carbide,silicon carbide,powder metallurgy,gemstone,rhenium material,HSS parts,polysilicon material,graphite and carbon material for the purpose of debinding,derubber,dewax,degrease,sintering and so on.
2.Configuration:
380V±5%，50Hz/60Hz 3 phase 5 wire
One control cabinet to one furnace and optional for one to two type or one to four type.
The facility equipped of cooling tower or gas purifier for optional.
3.Technology parameter:

Model/Parameter		Lab usage	Production usage
Model/Parameter		NTI-DZL-54W	NTI-DZL-98W	NTI-DZL-243W	NTI-DZL-300W	NTI-DZL-400W	NTI-DZL-720W
Working size	mm	300×300×600	350X350X800	450×450×1200	500×500×1200	500×500×1600	600×600×2000
Control process		Thyristor control
Heating type	/	Graphite resistance heating
HT zone capacity	L	54	98	243	300	400	720
Loading weight	g	HT zone capacity × density (g/cm3)×1000 Remark：1L=1000cm3
Ultimate vacuum	Pa	20
IF power	Kw	100	200	210	240	270	378
Heating zone	Zone	1	3	3	3	3	3
Max. working temperature	℃	2300	2300	2300	2300	2300	2300
Usual working temperature	℃	2200	2200	2200	2200	2200	2200
Temperature unifomity	℃	±5	±5	±5	±5	±5	±5
Working environment	/	Vacuum or argon atmosphere protection( micro positive pressure)

You can customize it as per your real requirement.

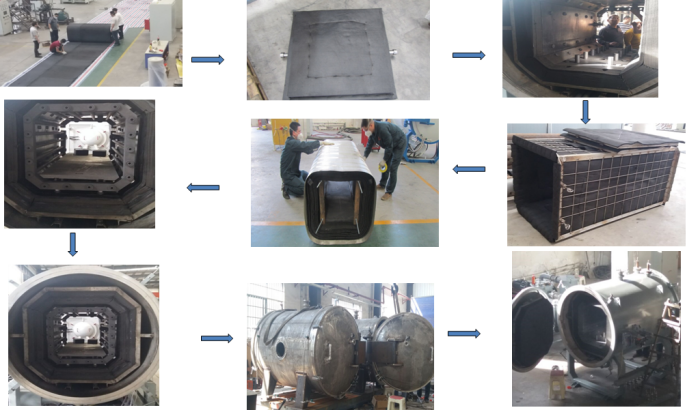

Production procedure

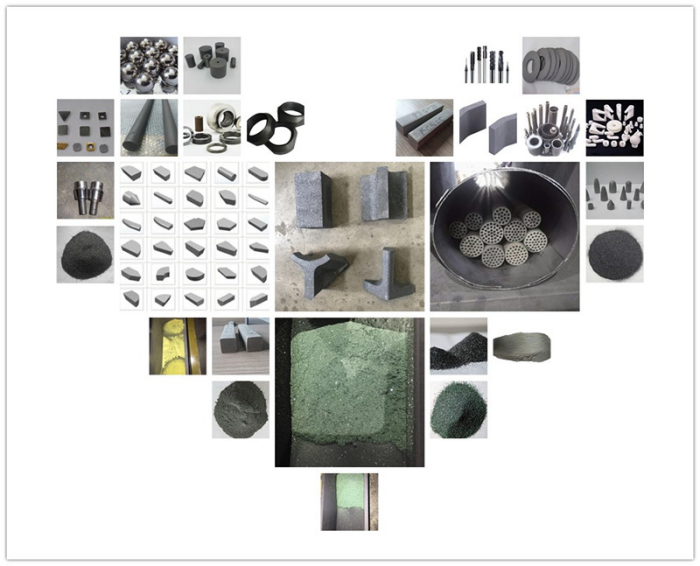

Raw material suitable for heating

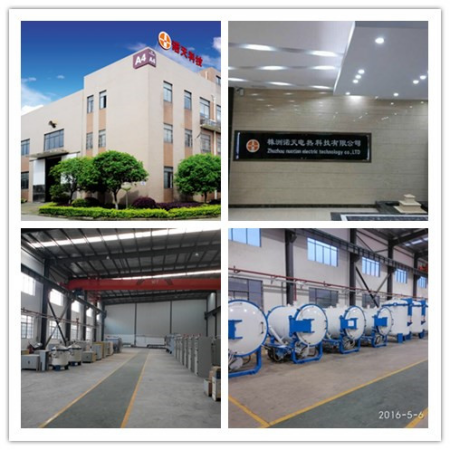

Company information
We are real and professional OEM of industry furnace over 10 years who has 10 staff of designer and technican experienced for years.
Main manufacturing products:Graphitization furnace,carbonization furnace,resistance furnace,de-rubber furnace,
de-wax furnace,de-grease furnace,laboratory furnace,sintering furnace,melting furnace,quenching equipment,hardening equipment,
anneal equipment and tempering equipment.
IF heating device,ultra audio induction heating equipment,
IF diathermy,hardening,welding equipment,
IF bending pipe machine,cooling tower,
graphite crucible,hard composite carbon felt
and such related industry products.

Clients visit
We have lots of famous clients from the world like Korea,Vietnam,Thailand,Malysia,Russia,Georgia,Ukraine and so on.

Honor of qualification

Packing mode

Service
1.Special size and requirement furnace can be customized.
2.The using method and operation and related knowledge taught by our engineer before shipment.
3.Engineers available to service machinery overseas after-sales service provided.
4.Payment Terms:T/T,Western union.
5.Price terms:FOB Guangzhou,China
6.Transport way:by sea,we have good forwarders,super service and price!
7.Delvery time:Estimated time of delivery is around 60 days after confirming to receive the deposit payment.
8.1 year of warranty.
9.Other services:we can produce furnace according to your drawing design or requirements.
Better technology,better quality,better price and better service.
